上海邦泉泵業制造有限公司（報價電話：021-57648032）

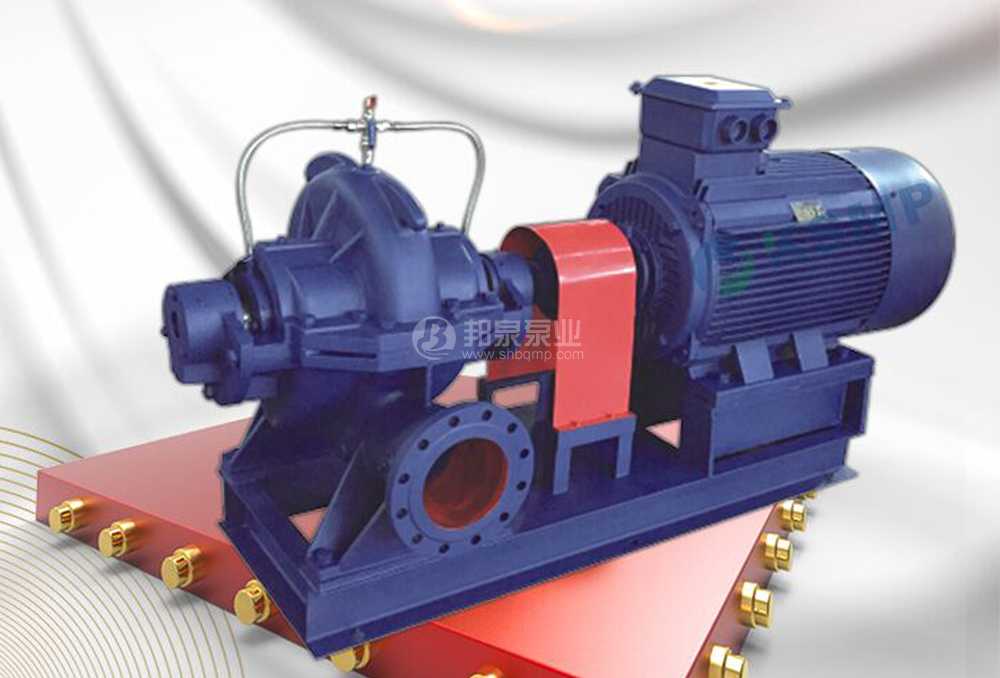

BQOW單級雙吸離心泵是臥式中開蝸殼泵，供輸送清水或物理化學性質類似于水的其他液體，根據用戶需求，單級離心泵通過改變泵結構及材質可用于輸送多泥砂水或各類腐蝕性液體，該系列泵適用于工廠、礦山、城市給排水、電站、農田排灌及各種水利工程。
BQOW單級雙吸離心泵產品特點：
1、本型泵的吸入口與吐出口均在水泵軸心線的下方，與軸線垂成水平方向．檢修時無需拆卸進出口水管及電機．從轉動方向看去，水泵為順時針方向旋轉(根據用戶需要亦可改為逆時針方向旋轉)。
2、泵主要零件有：泵體，泵蓋，葉輪，軸，雙吸密封環，軸套等。
3、泵體與泵蓋構成葉輪的工作室，在進出水法蘭上，制有安裝真空表和壓力表的管螺孔。進出水法蘭的下部，制有放水的管螺孔。
4、經過靜平衡校驗的葉輪，用軸套的兩邊的軸套螺母固定在軸上，其軸向位置可通過軸套螺母進行調整。
5、泵軸由兩個單列向心球軸承支承。軸承裝在軸承體內，安裝在泵體兩端，用黃油潤滑。
6、雙吸密封環用以減少水泵壓力室的水漏回吸水室。
7、泵通過彈性聯軸器由電動機直接傳動。必要時亦可用內燃機傳動。
8、軸封為軟填料密封(根據用戶需要可采用機械密封結構)。
BQOW型單級雙吸離心泵型號意義：
例：BQOW80-250B
80-泵出口口徑DN(mm)
BQOW-單級雙吸離心泵
250B-葉輪名義外徑
邦泉BQOW單級雙吸離心泵型號及規格表
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW80-220(I) | 83.5 | 13.8 | 1480 | 5.5 | |
| A | 77.2 | 11.8 | 4 | ||
| B | 70.4 | 9.8 | 3 | ||
| C | 64.4 | 8.2 | 3 | ||
| 164.5 | 55 | 2950 | 37 | ||
| A | 152.9 | 47.5 | 30 | ||
| B | 138.5 | 39 | 30 | ||
| C | 128.4 | 33.5 | 22 | ||
| BQOW80-220 | 66.5 | 12.8 | 1480 | 4 | |
| A | 61.1 | 10.8 | 4 | ||
| B | 55.8 | 9 | 3 | ||
| C | 51.3 | 7.6 | 2.2 | ||
| 134.5 | 51 | 2950 | 30 | ||
| A | 124.2 | 43.5 | 30 | ||
| B | 113 | 36 | 22 | ||
| C | 105 | 31 | 18.5 | ||
| BQOW80-280(I) | 104.5 | 22.5 | 1480 | 11 | |
| A | 96 | 19 | 11 | ||
| B | 88.1 | 16 | 7.5 | ||
| C | 79.4 | 13 | 5.5 | ||
| 208 | 90 | 2950 | 75 | ||
| A | 192.4 | 77 | 75 | ||
| B | 174.7 | 63.5 | 55 | ||
| C | 155 | 50 | 37 | ||
| BQOW80-280 | 86 | 20.7 | 1480 | 7.5 | |
| A | 80 | 18.1 | 7.5 | ||
| B | 73.2 | 15 | 5.5 | ||
| C | 66.8 | 12.5 | 4 | ||
| 172 | 82.5 | 2950 | 75 | ||
| A | 160 | 71.5 | 55 | ||
| B | 146.7 | 60 | 45 | ||
| C | 132.6 | 49 | 30 | ||
| BQOW80-350(I) | 114.4 | 38.8 | 1480 | 22 | |
| A | 105.5 | 33 | 15 | ||
| B | 96.3 | 27.5 | 15 | ||
| C | 87.1 | 22.5 | 11 | ||
| BQOW80-350 | 100 | 35.5 | 1480 | 15 | |
| A | 93.1 | 30.8 | 15 | ||
| B | 82.8 | 25.5 | 11 | ||
| C | 70 | 20 | 7.5 | ||
| BQOW100-260(I) | 145 | 18.8 | 1480 | 11 | |
| A | 132.9 | 15.8 | 11 | ||
| B | 122.9 | 13.5 | 7.5 | ||
| C | 115.9 | 11 | 5.5 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW100-260(I) | 289 | 75 | 2950 | 90 | |
| A | 264.9 | 63 | 75 | ||
| B | 240.6 | 52 | 55 | ||
| C | 223.4 | 44.8 | 45 | ||
| BQOW100-260 | 123.5 | 17 | 1480 | 11 | |
| A | 114 | 14.5 | 7.5 | ||
| B | 105.9 | 12.5 | 7.5 | ||
| C | 99.3 | 11 | 5.5 | ||
| 245.5 | 68 | 2950 | 75 | ||
| A | 227.7 | 58.5 | 55 | ||
| B | 212.6 | 51 | 45 | ||
| C | 195.2 | 43 | 37 | ||
| BQOW100-320(I) | 185.5 | 31.2 | 1480 | 22 | |
| A | 172 | 27 | 18.5 | ||
| B | 157.5 | 22.5 | 15 | ||
| C | 142.8 | 18.5 | 11 | ||
| 368 | 123 | 2950 | 200 | ||
| A | 341.6 | 106 | 160 | ||
| B | 314.8 | 90 | 110 | ||
| C | 245.4 | 74 | 90 | ||
| BQOW100-320 | 141.5 | 29.5 | 1480 | 18.5 | |
| A | 131.6 | 25.5 | 15 | ||
| B | 120 | 21.2 | 11 | ||
| C | 112.4 | 17 | 11 | ||
| 283 | 119 | 2950 | 132 | ||
| A | 263.3 | 103 | 110 | ||
| B | 237.8 | 84 | 90 | ||
| C | 215.5 | 69 | 75 | ||
| BQOW100-400(I) | 185.5 | 52 | 1480 | 45 | |
| A | 170.6 | 44 | 30 | ||
| B | 158.6 | 38 | 30 | ||
| C | 141.6 | 30.3 | 18.5 | ||
| BQOW100-400 | 163 | 52 | 1480 | 37 | |
| A | 149.9 | 44 | 30 | ||
| B | 138.4 | 37.5 | 22 | ||
| C | 121.1 | 28.7 | 18.5 | ||
| BQOW125-240(I) | 274.6 | 14.8 | 1480 | 18.5 | |
| A | 259.3 | 13.2 | 15 | ||
| B | 232.4 | 10.6 | 15 | ||
| C | 210.5 | 8.7 | 11 | ||
| 533.5 | 60 | 2950 | 132 | ||
| A | 496.7 | 52 | 110 | ||
| B | 454.3 | 43.5 | 75 | ||
| C | 411.6 | 34 | 75 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW125-240 | 256.5 | 15.1 | 1480 | 15 | |
| A | 242.5 | 13.5 | 15 | ||
| B | 223.8 | 11.5 | 11 | ||
| C | 199.1 | 9.1 | 7.5 | ||
| 472.5 | 60.5 | 2950 | 110 | ||
| A | 442.2 | 53 | 90 | ||
| B | 393.7 | 42 | 75 | ||
| C | 369.5 | 37 | 75 | ||
| BQOW125-300(I) | 270 | 27 | 1480 | 30 | |
| A | 243.7 | 22 | 22 | ||
| B | 220.5 | 18 | 18.5 | ||
| C | 195.8 | 14.2 | 15 | ||
| 535.5 | 108 | 2950 | 200 | ||
| A | 483.4 | 88 | 160 | ||
| B | 437.2 | 72 | 132 | ||
| C | 389 | 57 | 110 | ||
| BQOW125-300 | 242.5 | 25 | 1480 | 30 | |
| A | 222.3 | 21 | 18.5 | ||
| B | 202.9 | 17.5 | 15 | ||
| C | 179.5 | 13.7 | 11 | ||
| 479 | 100 | 2950 | 200 | ||
| A | 437.7 | 83.5 | 160 | ||
| B | 400.8 | 70 | 110 | ||
| C | 355.2 | 55 | 90 | ||
| BQOW125-380(I) | 310.5 | 47 | 1480 | 75 | |
| A | 282.8 | 39 | 45 | ||
| B | 254.2 | 31.5 | 37 | ||
| C | 221.9 | 24 | 30 | ||
| BQOW125-380 | 278 | 43 | 1480 | 55 | |
| A | 257.9 | 37 | 45 | ||
| B | 234.1 | 30.5 | 30 | ||
| C | 209.8 | 24.5 | 22 | ||
| BQOW125-480(I) | 328.5 | 76 | 1480 | 110 | |
| A | 307.3 | 66.5 | 90 | ||
| B | 282 | 56 | 75 | ||
| C | 250.4 | 44.2 | 45 | ||
| BQOW125-480 | 294.5 | 69.5 | 1480 | 90 | |
| A | 274.8 | 60.5 | 75 | ||
| B | 257.2 | 53 | 55 | ||
| C | 230 | 43.5 | 37 | ||
| BQOW150-280(I) | 443.5 | 21 | 1480 | 37 | |
| A | 410.6 | 18 | 30 | ||
| B | 367 | 15 | 22 | ||
| C | 338.2 | 11.5 | 18.5 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW150-280(I) | 443.5 | 21 | 1480 | 37 | |
| A | 410.6 | 18 | 30 | ||
| B | 367 | 15 | 22 | ||
| C | 338.2 | 11.5 | 18.5 | ||
| BQOW150-280 | 397 | 20.4 | 1480 | 30 | |
| A | 362.4 | 17 | 30 | ||
| B | 340.7 | 14.5 | 22 | ||
| C | 318.1 | 11.5 | 18.5 | ||
| BQOW150-350(I) | 447.5 | 38 | 1480 | 75 | |
| A | 404.2 | 31 | 55 | ||
| B | 363 | 25 | 37 | ||
| C | 324.7 | 20 | 30 | ||
| BQOW150-350 | 407.5 | 35 | 1480 | 55 | |
| A | 374.1 | 29.5 | 45 | ||
| B | 344.4 | 25 | 37 | ||
| C | 311.9 | 20.5 | 30 | ||
| BQOW150-450(I) | 515.5 | 66 | 1480 | 132 | |
| A | 468.4 | 54.5 | 110 | ||
| B | 418.5 | 43.5 | 75 | ||
| C | 375.4 | 35 | 55 | ||
| BQOW150-450 | 440 | 60 | 1480 | 110 | |
| A | 401.7 | 50 | 90 | ||
| B | 359.3 | 40 | 75 | ||
| C | 326.3 | 33 | 45 | ||
| BQOW150-570(I) | 584 | 105 | 1480 | 250 | |
| A | 536.2 | 88.5 | 200 | ||
| B | 493.6 | 75 | 160 | ||
| C | 450 | 61.5 | 132 | ||
| BQOW150-570 | 537 | 90 | 1480 | 200 | |
| A | 499.9 | 78 | 160 | ||
| B | 468.5 | 68.5 | 132 | ||
| C | 419.2 | 57.5 | 110 | ||
| BQOW200-340(I) | 695.5 | 30 | 1480 | 75 | |
| A | 641.2 | 25.5 | 75 | ||
| B | 586 | 21.3 | 55 | ||
| C | 530 | 17 | 37 | ||
| BQOW200-340 | 638 | 28 | 1480 | 75 | |
| A | 596.8 | 24.5 | 55 | ||
| B | 552.5 | 21 | 45 | ||
| C | 497.1 | 17 | 37 | ||
| BQOW200-410(I) | 710 | 52 | 1480 | 132 | |
| A | 641.9 | 42.5 | 110 | ||
| B | 586.6 | 35.5 | 90 | ||
| C | 525.6 | 28.5 | 75 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW200-410 | 649 | 48 | 1480 | 110 | |
| A | 596.1 | 40.5 | 90 | ||
| B | 550.2 | 37.5 | 75 | ||
| C | 495.7 | 28 | 55 | ||
| BQOW200-530(I) | 818 | 91 | 1480 | 315 | |
| A | 750 | 76.5 | 250 | ||
| B | 687.9 | 62.5 | 200 | ||
| C | 630 | 47.5 | 132 | ||
| BQOW200-530 | 735 | 81.7 | 1480 | 250 | |
| A | 670 | 68 | 185 | ||
| B | 633 | 55 | 160 | ||
| C | 576.3 | 43.5 | 110 | ||
| BQOW200-660(I) | 793 | 150 | 1480 | 500 | |
| A | 729.7 | 127 | 400 | ||
| B | 669.8 | 107 | 315 | ||
| C | 637.4 | 88 | 250 | ||
| BQOW200-660 | 721 | 132.5 | 1480 | 400 | |
| A | 670.2 | 114.5 | 315 | ||
| B | 621.6 | 98.5 | 250 | ||
| C | 570.6 | 83 | 200 | ||
| BQOW250-390(I) | 1052 | 39 | 1480 | 160 | |
| A | 967.7 | 33 | 132 | ||
| B | 915.3 | 27 | 110 | ||
| C | 843.3 | 20 | 75 | ||
| BQOW250-390 | 1030.5 | 37 | 1480 | 132 | |
| A | 958.3 | 32 | 110 | ||
| B | 880.3 | 27 | 90 | ||
| C | 819.6 | 22 | 75 | ||
| BQOW250-470(I) | 1174.5 | 66 | 1480 | 280 | |
| A | 1072.2 | 55 | 220 | ||
| B | 975.2 | 45.5 | 200 | ||
| C | 903.3 | 37.5 | 160 | ||
| BQOW250-470 | 1081 | 54.5 | 1480 | 220 | |
| A | 1003.9 | 47 | 200 | ||
| B | 911 | 40.5 | 160 | ||
| C | 830 | 34.5 | 110 | ||
| BQOW250-610(I) | 1243 | 116 | 1480 | 560 | |
| A | 1154.1 | 100 | 450 | ||
| B | 1051.4 | 83 | 355 | ||
| C | 970 | 66 | 250 | ||
| BQOW250-610 | 1045 | 104 | 1480 | 400 | |
| A | 972.1 | 90 | 315 | ||
| B | 884.5 | 74.5 | 250 | ||
| C | 806.9 | 62 | 200 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW300-330(I) | 1099 | 24.5 | 1480 | 110 | |
| A | 1020 | 19.8 | 90 | ||
| B | 970 | 15.5 | 75 | ||
| C | 920 | 11.5 | 45 | ||
| BQOW300-330 | 940 | 23 | 1480 | 90 | |
| A | 876.6 | 20 | 90 | ||
| B | 801 | 16.7 | 55 | ||
| C | 705 | 13.7 | 45 | ||
| BQOW300-450(I) | 1678.5 | 53 | 1480 | 315 | |
| A | 1576.8 | 45 | 280 | ||
| B | 1476 | 36.5 | 200 | ||
| C | 1360.8 | 27.5 | 160 | ||
| BQOW300-450 | 1620 | 51.5 | 1480 | 315 | |
| A | 1519.2 | 45 | 250 | ||
| B | 1422 | 37.5 | 200 | ||
| C | 1332 | 30.5 | 160 | ||
| BQOW300-550(I) | 1750 | 94 | 1480 | 630 | |
| A | 1645.2 | 76 | 450 | ||
| B | 1573.2 | 62 | 355 | ||
| C | 1515.6 | 50 | 280 | ||
| BQOW300-550 | 1550 | 80 | 1480 | 450 | |
| A | 1447.2 | 67 | 355 | ||
| B | 1360.8 | 57 | 280 | ||
| C | 1281.6 | 47.5 | 250 | ||
| BQOW300-710(I) | 1836 | 160 | 1480 | 1120 | |
| A | 1735.2 | 136 | 900 | ||
| B | 1623.6 | 112 | 710 | ||
| C | 1537.2 | 91 | 500 | ||
| BQOW300-710 | 1690 | 139 | 1480 | 800 | |
| A | 1573.2 | 119 | 710 | ||
| B | 1450.8 | 99 | 560 | ||
| C | 1342.8 | 81 | 400 | ||
| BQOW350-380(I) | 1733 | 32 | 1480 | 200 | |
| A | 1692 | 26.5 | 160 | ||
| B | 1641.6 | 21 | 132 | ||
| C | 1602 | 15 | 110 | ||
| BQOW350-380 | 1424 | 31 | 1480 | 160 | |
| A | 1335.6 | 26.3 | 132 | ||
| B | 1270.8 | 22.5 | 110 | ||
| C | 1188 | 17.8 | 90 | ||
| BQOW350-440(I) | 2745 | 43.5 | 1480 | 450 | |
| A | 2635.2 | 35 | 355 | ||
| B | 2563.2 | 27.5 | 280 | ||
| C | 2484 | 21.5 | 220 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW350-440 | 2235 | 42.5 | 1480 | 355 | |
| A | 2088 | 36 | 280 | ||
| B | 1987.2 | 30 | 250 | ||
| C | 1847.6 | 25 | 220 | ||
| BQOW350-520(I) | 2610 | 70 | 1480 | 630 | |
| A | 2430 | 60 | 560 | ||
| B | 2232 | 50 | 400 | ||
| C | 2070 | 38 | 315 | ||
| BQOW350-520 | 2450 | 67 | 1480 | 560 | |
| A | 2268 | 59.5 | 500 | ||
| B | 2088 | 50 | 400 | ||
| C | 1944 | 41.5 | 315 | ||
| BQOW350-640 | 2160 | 126.2 | 1480 | 1000 | |
| A | 2000 | 116 | 900 | ||
| B | 1920 | 106 | 800 | ||
| C | 1830 | 95.6 | 710 | ||
| D | 1695 | 83 | 560 | ||
| BQOW400-550(I) | 2635 | 86 | 1480 | 900 | |
| A | 2520 | 79 | 800 | ||
| B | 2418 | 71.8 | 630 | ||
| C | 2311.5 | 64 | 630 | ||
| D | 2235.6 | 57.8 | 560 | ||
| BQOW400-550 | 2190 | 63.8 | 1480 | 500 | |
| A | 2045.5 | 57.8 | 450 | ||
| B | 1882 | 51.2 | 400 | ||
| C | 1767.6 | 45 | 315 | ||
| BQOW400-600 | 2502 | 90.2 | 1480 | 800 | |
| A | 2422 | 81.8 | 710 | ||
| B | 2354 | 74 | 630 | ||
| C | 2225.5 | 68 | 560 | ||
| D | 2127.6 | 59.8 | 500 | ||
| BQOW400-600(I) | 3176.5 | 113 | 1480 | 1400 | |
| A | 3007 | 103.6 | 1120 | ||
| B | 2922.4 | 93 | 1000 | ||
| C | 2732 | 83.7 | 900 | ||
| D | 2641.6 | 74 | 800 | ||
| BQOW500-520(I) | 3217.5 | 25 | 980 | 280 | |
| A | 3088 | 23 | 250 | ||
| B | 2964.5 | 21 | 220 | ||
| C | 2846 | 18.4 | 200 | ||
| D | 2732 | 16.3 | 185 | ||
| BQOW500-520 | 2777 | 22.5 | 980 | 220 | |
| A | 2638 | 19.5 | 200 | ||
| B | 2484 | 15.6 | 160 | ||
| C | 2178.5 | 13.8 | 132 | ||
| 臥式單級雙吸離心泵規格型號 | 流量m3/h | 揚程m | 轉速r/min | 功率KW | |
| BQOW500-650(I) | 3510 | 41.5 | 980 | 500 | |
| A | 3352.5 | 38.7 | 450 | ||
| B | 3172.5 | 36 | 400 | ||
| C | 3015 | 33.2 | 355 | ||
| D | 2767.5 | 29.7 | 315 | ||
| BQOW500-650 | 2992 | 33.7 | 980 | 355 | |
| A | 2835 | 30.2 | 315 | ||
| B | 2722.5 | 27.7 | 280 | ||
| C | 2642.5 | 24 | 250 | ||
| BQOW500-710(I) | 3852 | 64.4 | 980 | 1000 | |
| A | 3672 | 592 | 800 | ||
| B | 3470.4 | 53 | 710 | ||
| C | 3204 | 47.7 | 560 | ||
| D | 3024 | 42 | 500 | ||
| BQOW500-710 | 3006 | 49 | 980 | 560 | |
| A | 2812.5 | 44.2 | 450 | ||
| B | 2632.5 | 39.3 | 400 | ||
| C | 2407.5 | 34.6 | 355 | ||
| BQOW500-800(I) | 3996 | 80.6 | 980 | 1120 | |
| A | 3600 | 72.8 | 900 | ||
| B | 3204 | 65.3 | 800 | ||
| C | 2880 | 58 | 630 | ||
| BQOW500-800 | 3474 | 62.5 | 980 | 800 | |
| A | 3330 | 55.8 | 710 | ||
| B | 3150 | 49.6 | 560 | ||
| C | 2970 | 43.6 | 500 | ||
| BQOW500-860(I) | 4183.2 | 111.2 | 980 | 1600 | |
| A | 3996 | 100.7 | 1400 | ||
| B | 3780 | 90.4 | 1250 | ||
| C | 3528 | 80.4 | 1120 | ||
| BQOW500-860 | 3600 | 90 | 980 | 1120 | |
| A | 3492 | 82.9 | 1000 | ||
| B | 3384 | 77.2 | 900 | ||
| C | 3204 | 71.5 | 800 | ||
| D | 3081.6 | 65.8 | 800 | ||
| BQOW600-560(I) | 4716 | 24.2 | 980 | 400 | |
| A | 4428 | 21.5 | 355 | ||
| B | 4046.4 | 17.8 | 250 | ||
| C | 3787 | 15.4 | 220 | ||
| BQOW600-560 | 3996 | 20.2 | 980 | 280 | |
| A | 3744 | 17.8 | 250 | ||
| B | 3461.5 | 15.63 | 200 | ||
| C | 3157 | 13 | 160 | ||
| BQOW600-630(I) | 4736.5 | 39 | 980 | 630 | |
| A | 4420 | 34.1 | 560 | ||
| B | 4080 | 29.1 | 450 | ||
| C | 3755 | 24.8 | 355 | ||
